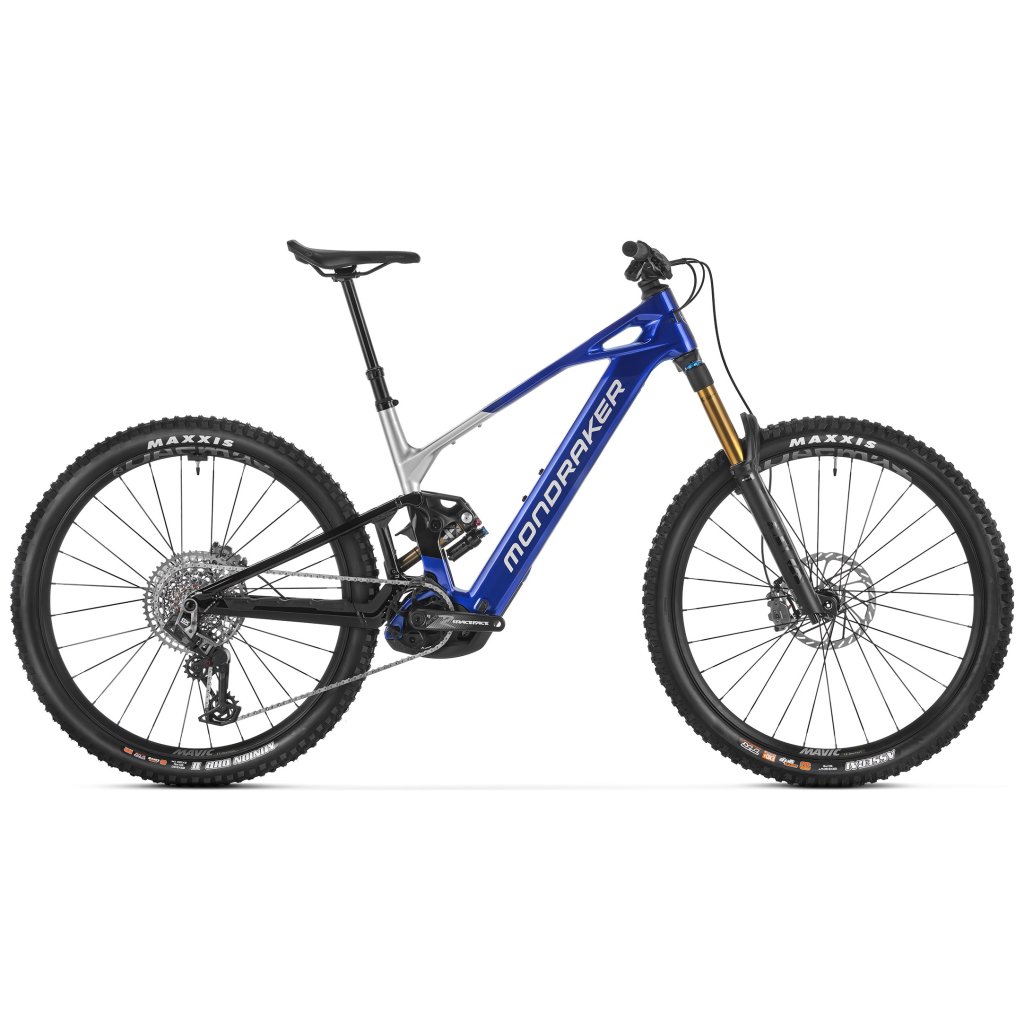

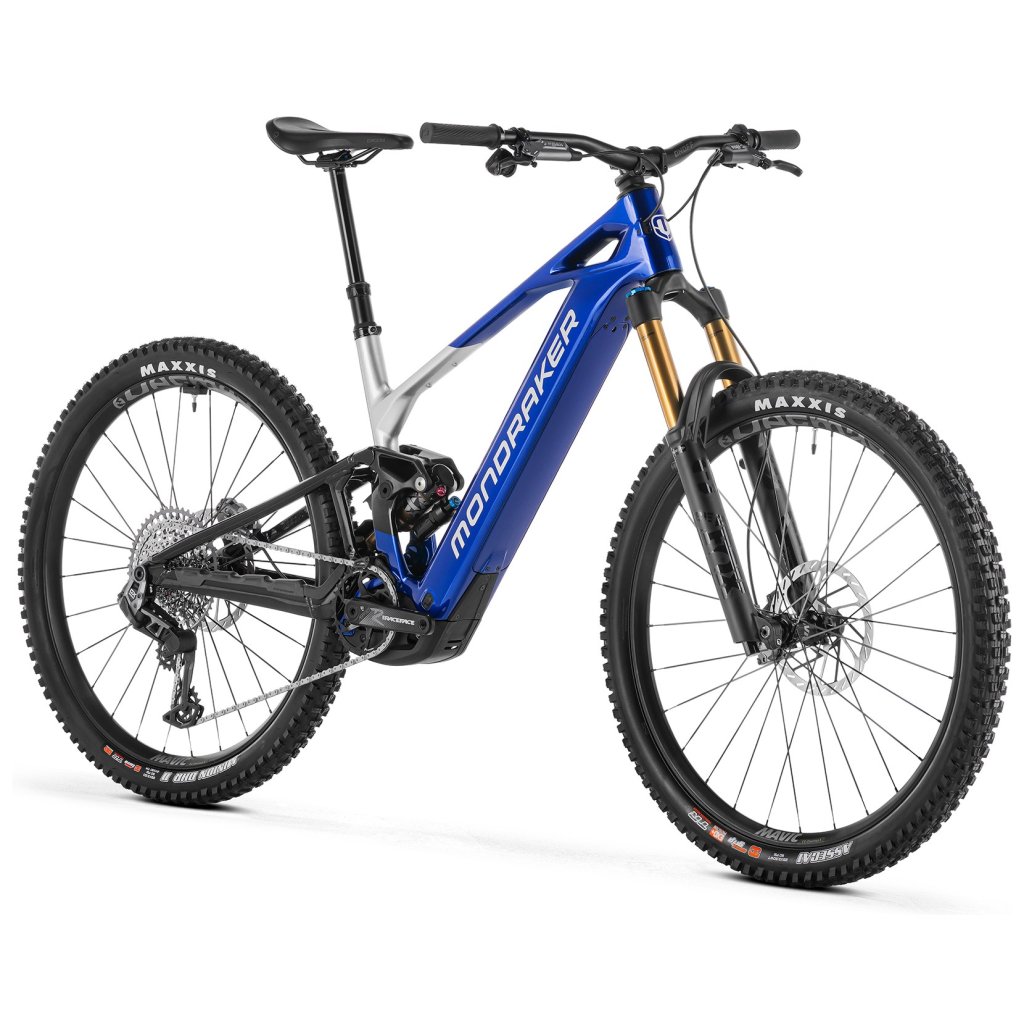

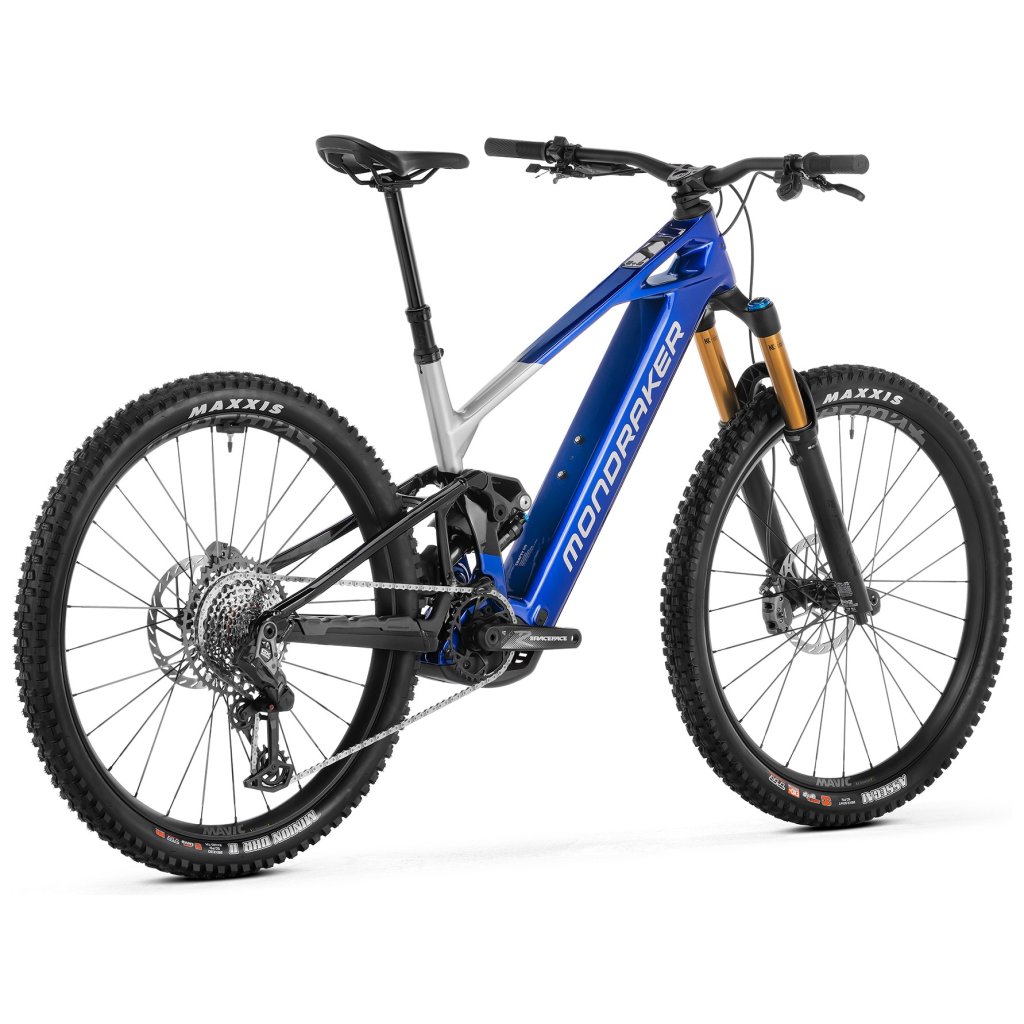

Mondraker Crafty Carbon RR, elektrobicykel - Admiral Blue 2026
Kód: 010.26309-S 010.26309-M 010.26309-M/L 010.26309-L 010.26309-XL Zvoľte variantPodrobný popis
Popis produktu nie je dostupný
Dodatočné parametre
| Kategória: | Celoodpružené elektrobicykle |
|---|---|
| Záruka: | doživotná |
| EAN: | Zvoľte variant |
| Zameranie: | Enduro |
| Systém: | Bosch |
| Motor: | Bosch Perf. Line CX 5. gen |
| Kapacita batérie: | 800wh |
| Materiál: | Karbón |
| Veľkosť kolies: | 29" |
| Predný zdvih: | 160mm |
| Zadný zdvih: | 150mm |
| Počet prevodov: | 1x12 |
| Farba: | Modrá |
| Rám: | Crafty Stealth Air full Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, |
| Veľkosti: | S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm |
| Tlmič: | Fox Float X Factory Kashima EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings |
| Nastavenie tlmiča: | CS40 compression, RL70 rebound, Rezi B40, LML, 0.2 volume spacer |
| Vidlica: | Fox 38 29 Float GRIPX2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload |
| Hlavové zloženie: | Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock |
| Predstavec: | Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore |
| Riadítka: | Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise. |
| Sedlo: | Ergon SM-10 |
| Sedlovka: | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm) |
| Gripy: | Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size |
| Predná brzda: | Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| Zadná brzda: | Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| Brzodové páky: | Sram Maven Bronze , SwingLink and lever pivot bushings, tools-free reach adjust |
| Ráfiky: | Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes |
| Špice: | Mavic J-bend double butted, contactless lacing |
| Predný náboj: | Mavic, Boost 15x110mm, IS 6 bolts |
| Zadný náboj: | Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, XD freehub |
| Predný plášť: | Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead |
| Zadný plášť: | Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead |
| Kľuky: | Race Face Aeffect-R ebike, 160mm |
| Prevodník: | Sram Eagle 34T T-Type, direct mount, steel, CL55 |
| Reťaz: | Sram GX Eagle T-Type, 12s, Powerlock |
| Prehadzovačka: | Sram GX Eagle AXS, T-Type, 12s |
| Radenie: | Sram Eagle AXS Pod MMX, 12s |
| Kazeta: | Sram XS-1275, 10-52T, T-Type, 12s |
| Displej: | Kiox 400 / Bosch Mini Remote |
| Motor: | Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y) |
| Baterka: | Bosch Powertube 800Wh |
| Prevody: | 1x12 |
| Veľkosť kolies: | 29 |
| Pätka: | Sram UDH |
| Váha: | 24,4 kg |
| Typ vidlice: | Suspension fork |
| Materiál rámu: | Carbon/Aluminium |
