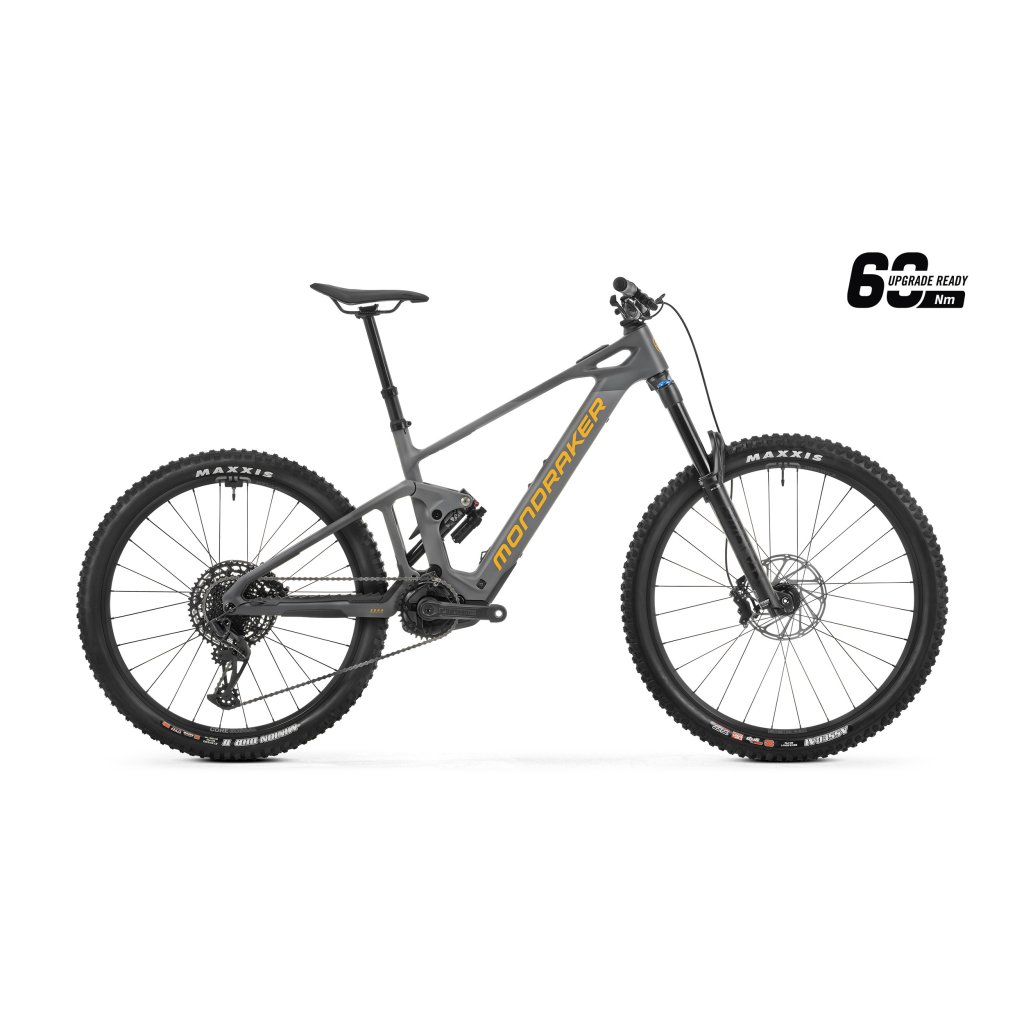

Mondraker Dune R, elektrobicykel - nimbus grey/obsidian grey/dense yellow 2025

Podrobný popis

Mondraker Dune R, elektrobicykel - nimbus grey/obsidian grey/dense yellow 2025

•

  Frame

  Stealth Air full Carbon, Updated Zero Suspension System, Mullet, 165mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.




  Sizes

  S: 380mm / M: 420mm / L: 450mm / XL: 490mm

•

  Rear shock

  Fox Float X Performance EVOL, 205x65mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings




  Shock settings

  Medium compression, medium rebound, air volume spacer 0.4

•

  Fork

  FOX 38 Float 3P Performance Grip, 170mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload




  Headset

  Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock

•

  Stem

  Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore




  Handlebar

  Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.

•

  Grips

  Onoff Forest, CNC lock-on, 135mm




  Seatpost

  Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), L size: 180-155mm (468-275mm), XL size: 210-185mm (528-305mm)

•

  Saddle

  Fizik Terra Aidon Slim X5




  Front brake

  Sram DB8 stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

•

  Rear brake

  Sram DB8 stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads




  Brake lever

  Sram DB8, SwingLink and lever pivot bearings, tools-free reach and contact point adjust

•

  Rims

  e*thirteen Grappler Core, Hookless 6066 Welded Aluminum 30mm internal width, tubeless ready, 28F spokes 29 front, 27''''''''5 rear




  Spokes

  e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers

•

  Front hub

  e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts




  Rear hub

  e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG Freehub

•

  Front tire

  Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead




  Rear tire

  Maxxis Minion DHR II 27’5x2.4 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead

•

  Crankset

  e*Thirteen Helix Core E*Spec Plus, All sizes: 160mm




  Rings

  Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD

•

  Chain

  Sram NX Eagle, 12s, Powerlock




  Rear derrailleur

  Sram GX Eagle,12s

•

  Shift levers

  Sram Trigger NX Eagle, 12s, X-Actuation 1:1, single click




  Casette

  Sram PG-1230, 11-50T, 12s

•

  Derailleur hanger

  Sram UDH




  Weight

  19,9 kg

•

  Display

  Purion 400 / Bosch Mini Remote / Bosch System Controller




  Motor

  Bosch Performance Line SX (25Km/h) GEN4 SMART SYSTEM Diagonal, Wide

•

  Battery

  Bosch Compact Powertube 400Wh
