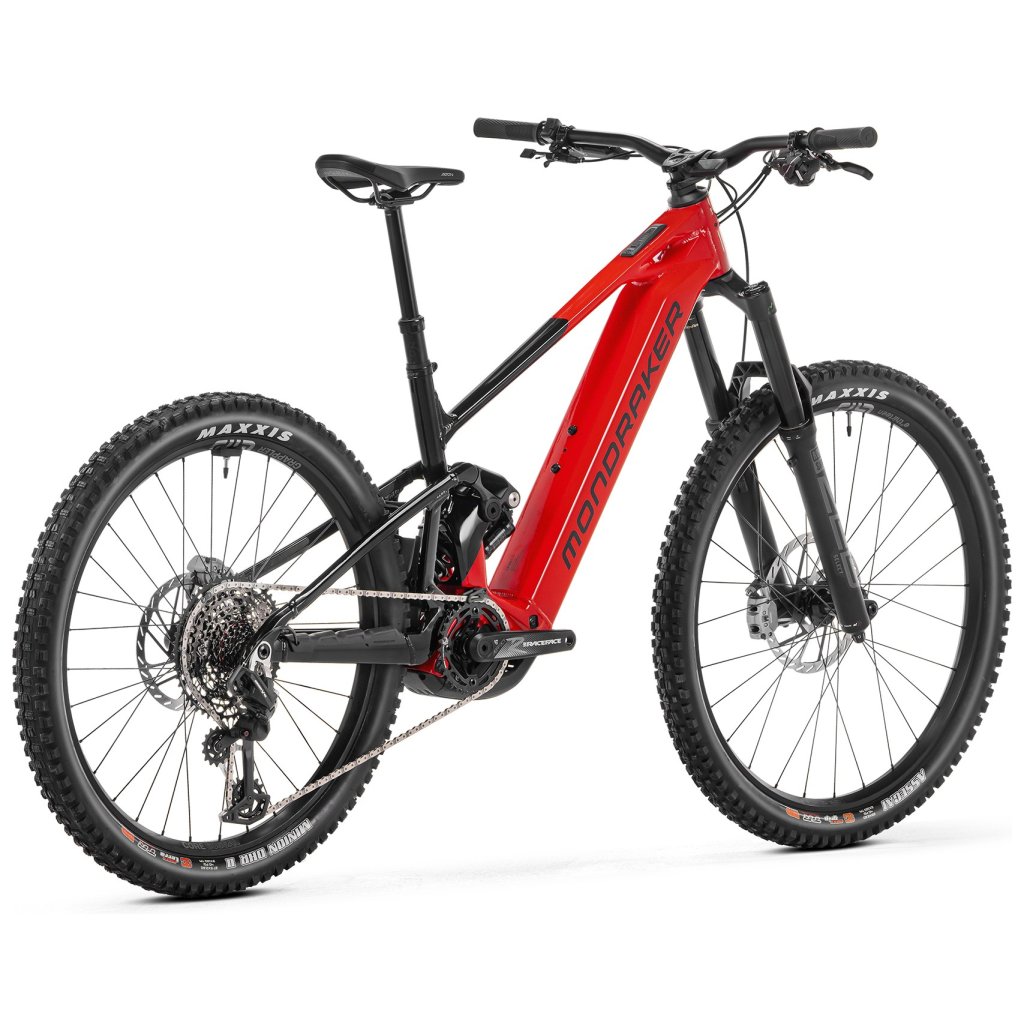

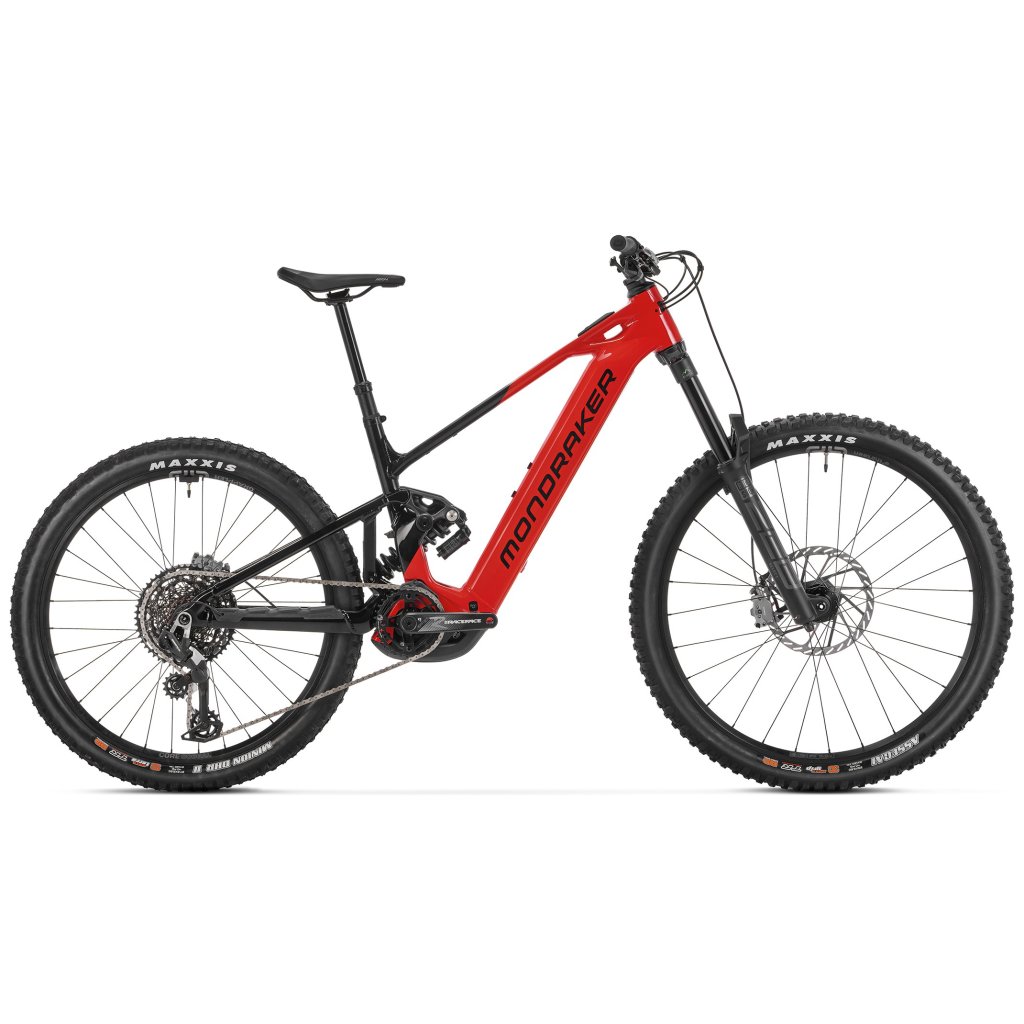

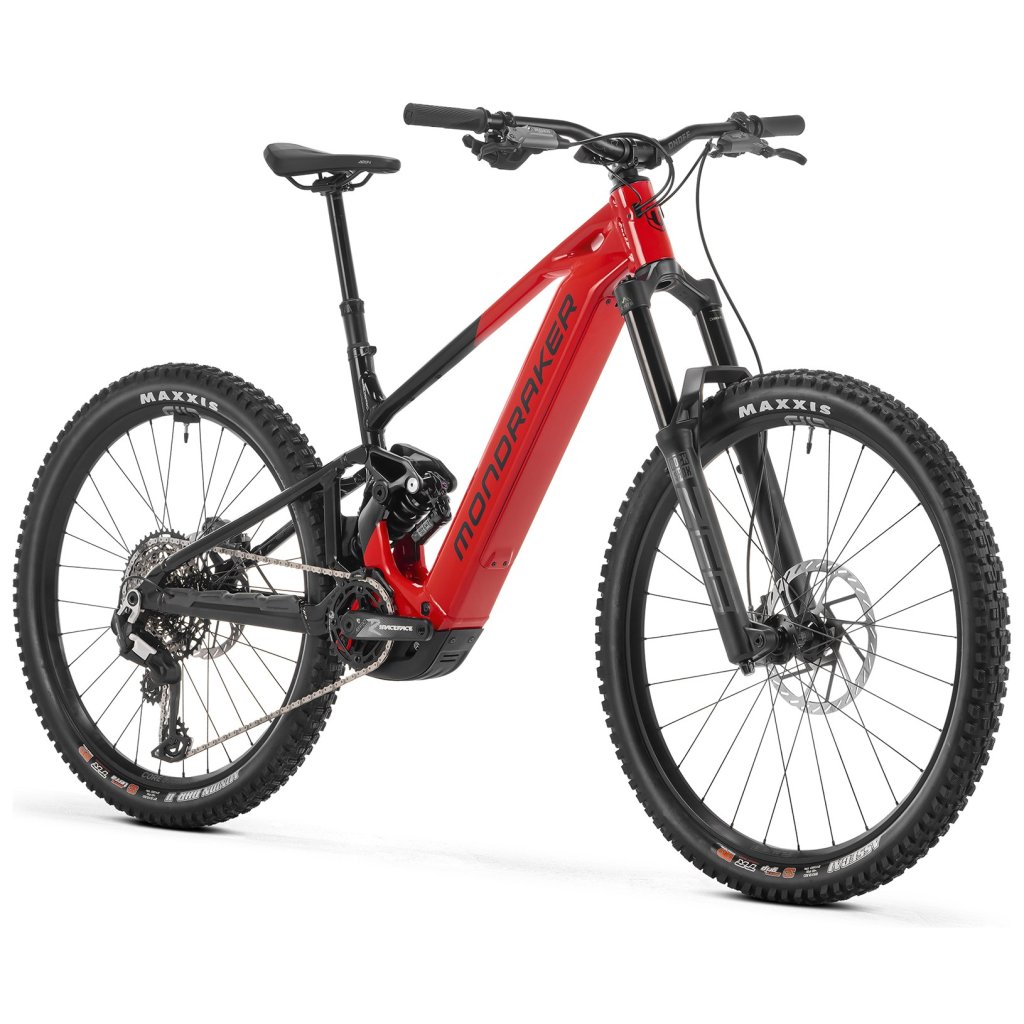

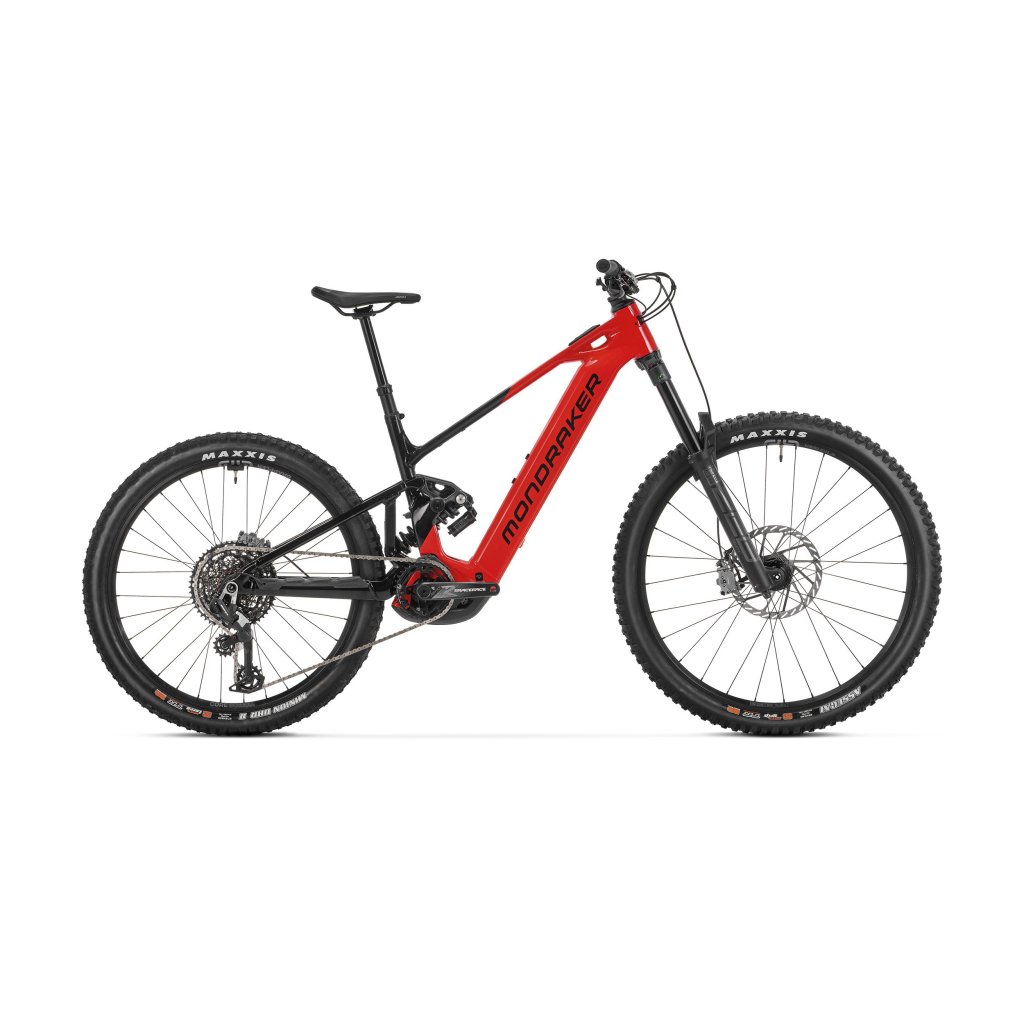

Mondraker Level R, elektrobicykel - Chili Red 2026
Kód: 010.26344-S 010.26344-M 010.26344-M/L 010.26344-L 010.26344-XL Zvoľte variantPodrobný popis
Popis produktu nie je dostupný
Dodatočné parametre
| Kategória: | Celoodpružené elektrobicykle |
|---|---|
| Záruka: | doživotná |
| EAN: | Zvoľte variant |
| Zameranie: | Enduro |
| Systém: | Bosch |
| Motor: | Bosch Perf. Line CX 5. gen |
| Kapacita batérie: | 800wh |
| Materiál: | Hliník |
| Veľkosť kolies: | Mullet |
| Predný zdvih: | 180mm |
| Zadný zdvih: | 170mm |
| Počet prevodov: | 1x12 |
| Farba: | Červená |
| Rám: | Level 6061 Alloy Stealth Evo, Updated Zero Suspension System, Mullet, 170mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capaci |
| Veľkosti: | S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm |
| Tlmič: | RockShox Vivid Coil base, 205x65mm. Settings: external bottom out, low-speed rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings |
| Nastavenie tlmiča: | C26 compression, R23 rebound. Spring rate: S size 350 lbs, M size 400 lbs, ML size 450 lbs, L size 500 lbs, XL size 500 lbs |
| Vidlica: | RockShox ZEB Select Charger RC 29, 180mm, e-bike approved, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: low-speed compression, low-speed rebound, air preload |
| Hlavové zloženie: | Onoff ZS44/ZS56, 1-1/8", 1.5" head tube, ACB sealed bearings, top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º |
| Predstavec: | Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| Riadítka: | Onoff S3 1.0 6061 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise. |
| Sedlo: | FIZIK Terra Aidon X5 145mm |
| Sedlovka: | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm) |
| Gripy: | Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size |
| Predná brzda: | Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, HS2 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| Zadná brzda: | Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| Brzodové páky: | Sram Maven Bronze , SwingLink and lever pivot bushings, tools-free reach adjust |
| Ráfiky: | e*thirteen Grappler Core, Hookless 6066 Welded Aluminum 30mm internal width, tubeless ready, 28F spokes 29 front, 27''5 rear |
| Špice: | e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers |
| Predný náboj: | e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts |
| Zadný náboj: | e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG Freehub |
| Predný plášť: | Maxxis Assegai 29x2.6WT, tubeless ready, 3C Maxx Grip compound, DD protection, 120x2TPI, folding bead |
| Zadný plášť: | Maxxis Minion DHR II 27’5x2.6 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 120x2TPI, folding bead |
| Kľuky: | Race Face Aeffect ebike, All sizes: 160mm |
| Prevodník: | Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55 |
| Reťaz: | Sram 70 Eagle T-Type, 12s, Powerlock |
| Prehadzovačka: | Sram 90 Eagle T-Type, 12s |
| Radenie: | Sram 90 Eagle, 12s, T-Type Actuation, single click |
| Kazeta: | Sram XS-1270, 10-52T, T-Type, 12s |
| Displej: | Purion 400 / Bosch Mini Remote / Bosch System Controller |
| Motor: | Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y) |
| Baterka: | Bosch Powertube 800Wh |
| Prevody: | 1x12 |
| Veľkosť kolies: | 29/27,5 |
| Pätka: | Sram UDH |
| Váha: | 26,7 kg |
| Typ vidlice: | Suspension fork |
| Materiál rámu: | Aluminium |
